40km Ethernet COFDM UAV Video Transmitter Support Mavlink Drone Video Radio Link with TTL
Mavlink UAV Video Link Description:
The new model KP-OF1400 is a robust broadband OFDM Ethernet wireless transceiver radio, which is equipped with standard Ethernet protocol E802.11 and also RS232/TTL serial port with dual aerials for any IP solutions.
It combine with FHSS technology to make sure better stability signal communication even in rapid movement condition, and self-healing ability then can hop to a good frequency range while happen to interference by surrounding.
It could achieve any media files share as like what virtual network can do, like Ethernet access, download database, VOIP, remote maintain functions and so on.
Main feature:
• Up to 10MHz bandwidth
• FHSS technology
• Support for any E802.11 devices
• Dual RF antenna ports
• RS232/TTL data serial port
• User-defined encryption support
• Point-to-point wireless communication
• WLAN Support
• Rapid movement communication support
Application:
This new, ground, air or sea IP solution is ideal for military environments, and its ruggedized, compact, low power and lightweight form factor makes it especially suited for UAV surveillance, remote robots control and any other types of unmanned system.
Specification:
| Working frequency | 1430-1444MHz(Automatic frequency selection) |
| Modulation | FHSS |
| RF bandwidth | 5M/10M |
| RF power | 1W Option |
| Channel support | 4 channel standard definition sync |
| Sensitivity | -93dBm |
| Data serial port | TTL/RS232 |
| Ethernet | Standard RJ45 |
| Protocol | E802.11 |
| Baud rate | 115200bps maximum |
| Dimension | 87*78*26mm |
| Weight | 193g |
| Working voltage | DC 5V |
| Working current | 0.5A |
| Power consumption | <2.5W |
| Working temperature | -40℃~60℃ |
| Transmit distance(1W) | 200m-500m NLOS (Ground to command centre) |
| 30-40km LOS (on UAV) |
| 20-30km LOS (Marine area) |

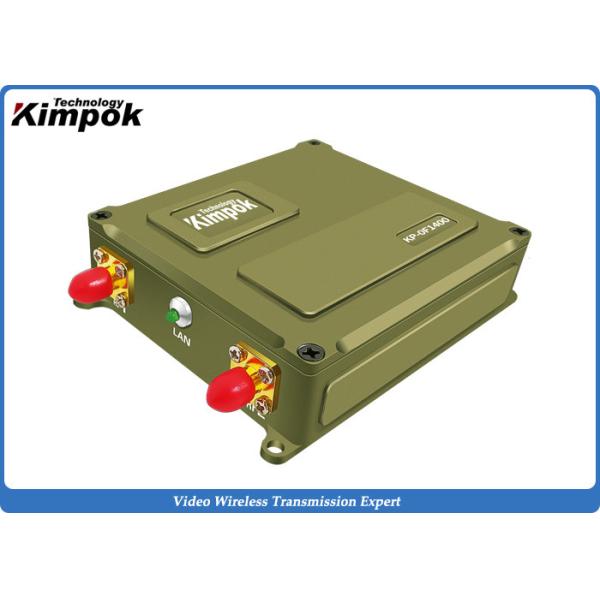

Picture:
Our Service:
1. One-stop ODM/OEM solution;
2. 24-hour technical support;
3. Lifetime maintenance (Replacement parts will be charged after a year);
4. Provide professional system design and construction;
5. You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 1998, we are the source.
Whatever your wireless surveillance application or budget, we can find the right solution for you.
Contact us! We can customize any solution to fit your requirements.
